Why Choose Our Diaphragm Wall Grab?

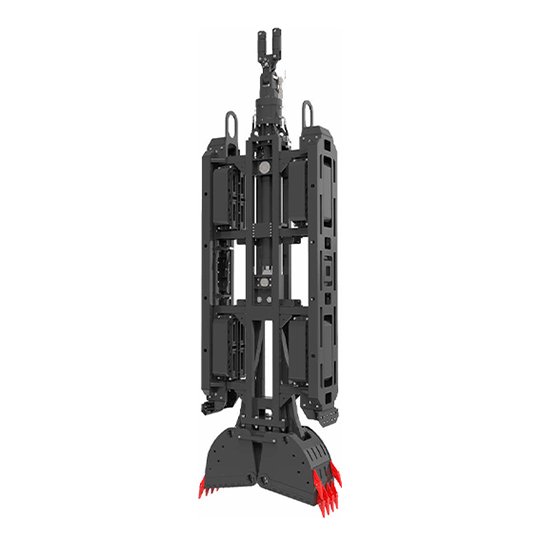

- BVEM diaphragm wall grabs are CE & ISO9001 certified.

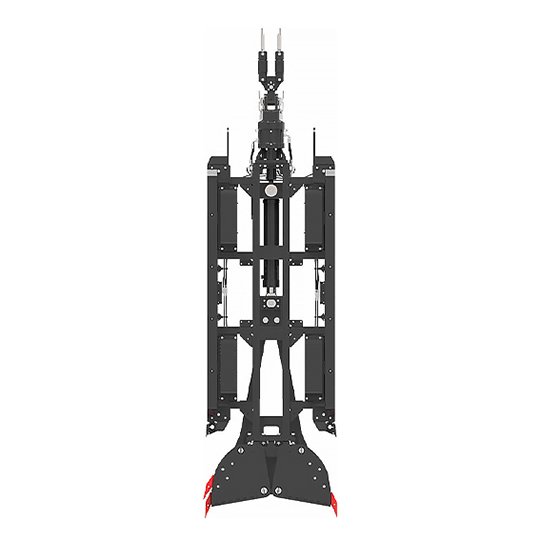

- Modular structure enables integral dismounting and one-click switch between rotary drilling and grab working modes.

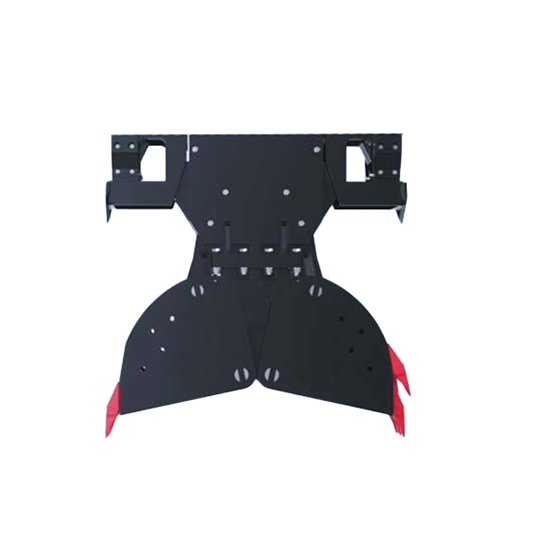

- High closing force plus dual-pump confluence delivers efficient digging even in hard soil.

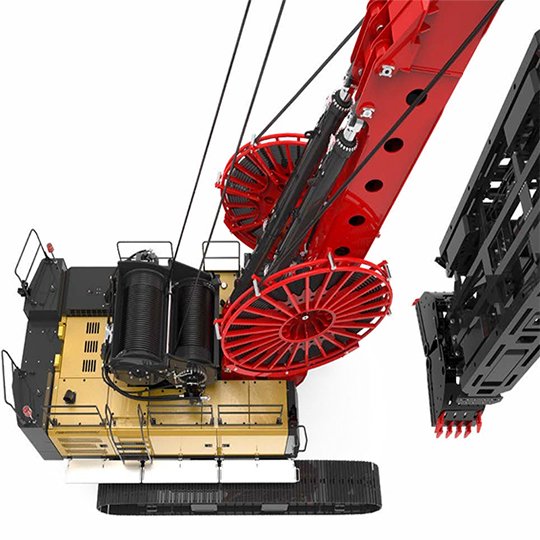

- Synchronized control of pipe reel, cable, and main winch cuts maintenance and extends service life.
- Optimized welded structures and synchronous reel control improve component durability effectively.
- HD touch screen, optimized system, and Bluetooth enable easy and pleasant operation.
BVEM Diaphragm Wall Grab – One Series Solves Your Varied Trenching Needs
Our full product range covers all foundation construction demands to suit your various projects. The dual-purpose rig features a rotatable grab, letting you work smoothly even in confined job sites. Compact machines deliver 1‰ trenching precision for your metro and water conservancy works, while heavy-duty units power large diaphragm wall projects like airports and deep foundation pits. Choose properly to cut your procurement cost and boost efficiency.
Contact us now to place your order!
BVEM Diaphragm Wall Grab Series

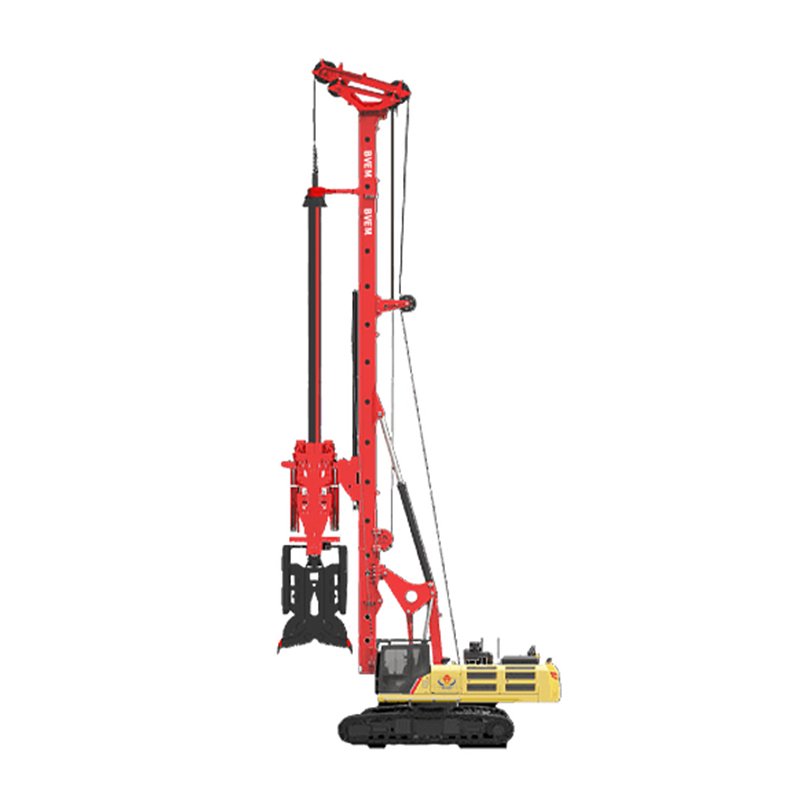

- Dual-Purpose Grab&Pile Rig
- Switch Drilling/Grab
- Max Depth:35m
- Max Closing:128t
One machine completes bored pile & diaphragm wall construction, lowering your extra equipment investment cost.
- Medium Wall Grab
- 1‰ High Precision
- Max Depth:80m
- Max Closing:165t
Real-time trench monitoring via mobile terminal reduces reliance on costly ultrasonic inspection tools.

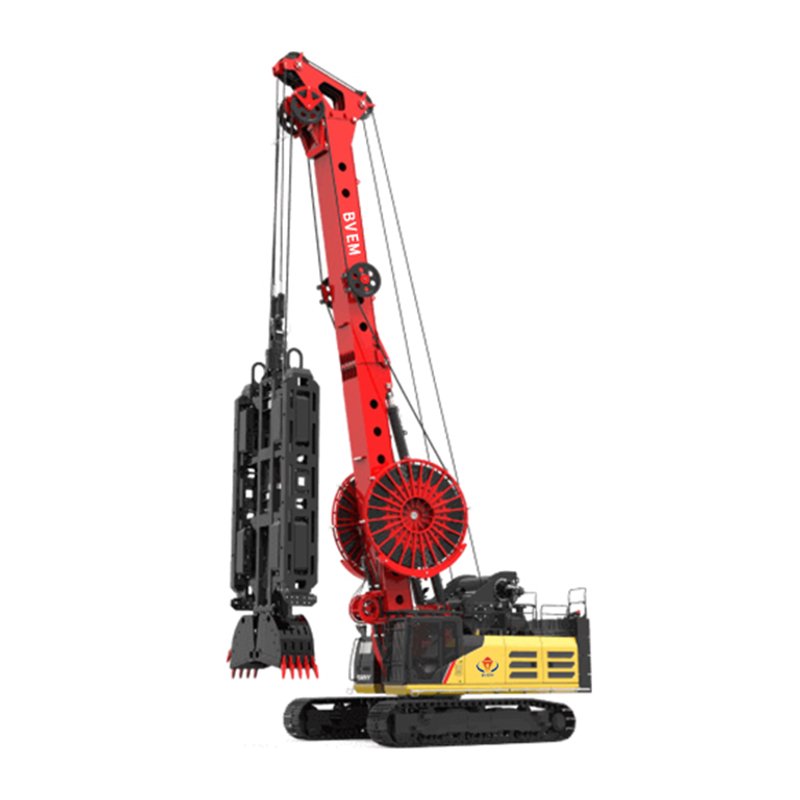

- Heavy Rock Wall Grab
- 220t Powerful Closing
- Max Depth:80m
- Hard Rock Available
Strong grabbing force adapts to hard rock strata, stable chassis for airport & large deep foundation projects.
Why You Need BVEM Diaphragm Wall Grab？
BVEM diaphragm wall grab integrates eight core advantages to deliver powerful rock breaking, fast and efficient digging, stable operation, 80m deep trenching, reduced operating cost, easy maintenance, and premium operator comfort for foundation construction.
Heavy-duty working unit delivers strong impact force, suitable for construction in ≤10MPa strongly weathered rock strata.
The bucket opens and closes within only 9 seconds; the synchronous confluence winch shortens the slag collection and discharge cycle for higher efficiency.
Optimized hydraulics speed up bucket action and shorten work cycles for efficient trenching.
Wide professional chassis buffers construction impact and vibration to upgrade overall operation safety.
Max working depth reaches 80m, covering over 90% underground projects with reliable forming for trenches over 60m deep.
A single-layer large main winch drum greatly prolongs steel wire rope service life, lowering your replacement expense.
Electric centralized lubrication plus hydraulic quick couplers simplify equipment disassembly, assembly, and daily servicing.

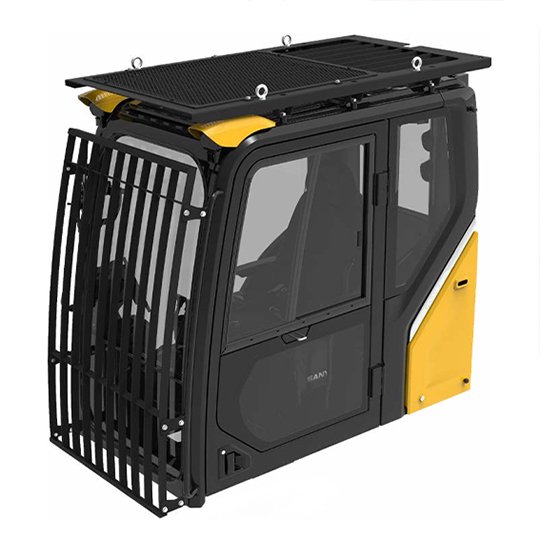

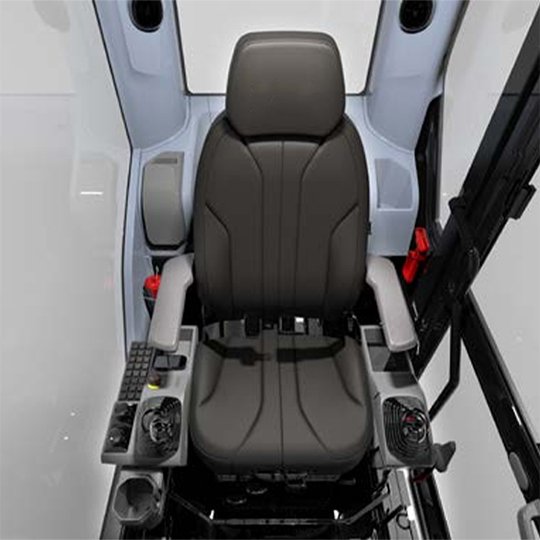

The spacious sealed cab is fitted with constant-temperature AC and a fully adjustable seat for high comfort.

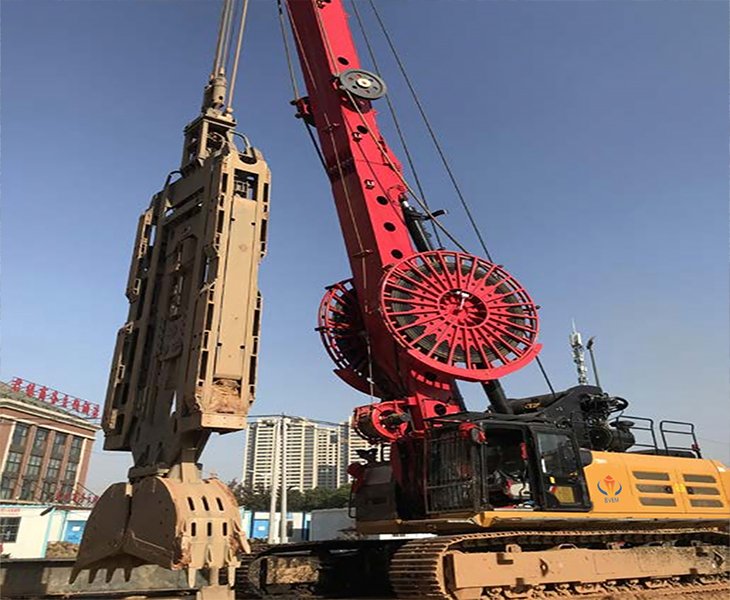

BVEM Diaphragm Wall Grab | Intelligent Onsite & Remote Control
Equipped with an HD touch display inside the cabin for responsive and smooth on-site operation. With our exclusive mobile APP, you can access real-time construction data, monitor trench curves, and print reports remotely at any time to precisely control trenching quality and lower your extra spending on ultrasonic testing devices. The APP also covers spare parts search, procurement, and one-click after-sales service application, realizing full digital equipment management and helping you save labor and daily maintenance.

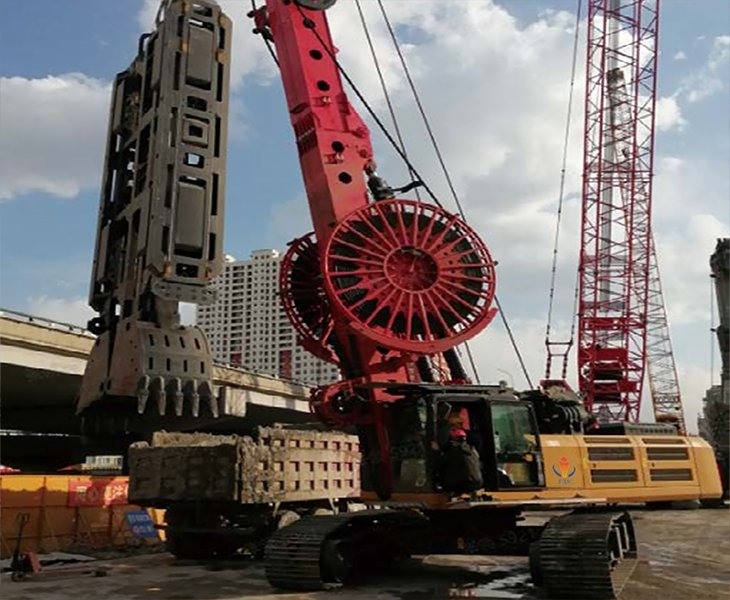

BVEM Diaphragm Wall Grab | High Precision & Vertical Trenching
Equipped with extended guide assemblies and large correction plates, the integrally machined square drill pipe fits tightly between inner and outer tubes. The machine displays grab tracks and trench curves in real time for you to check working status easily from the cabin. One-key deviation correction and automatic adjustment on the joystick work efficiently, saving you plenty of time from repeated manual calibration. You can maintain excellent verticality and high trenching precision to get neat trenches, cut rework, and lower your construction costs.

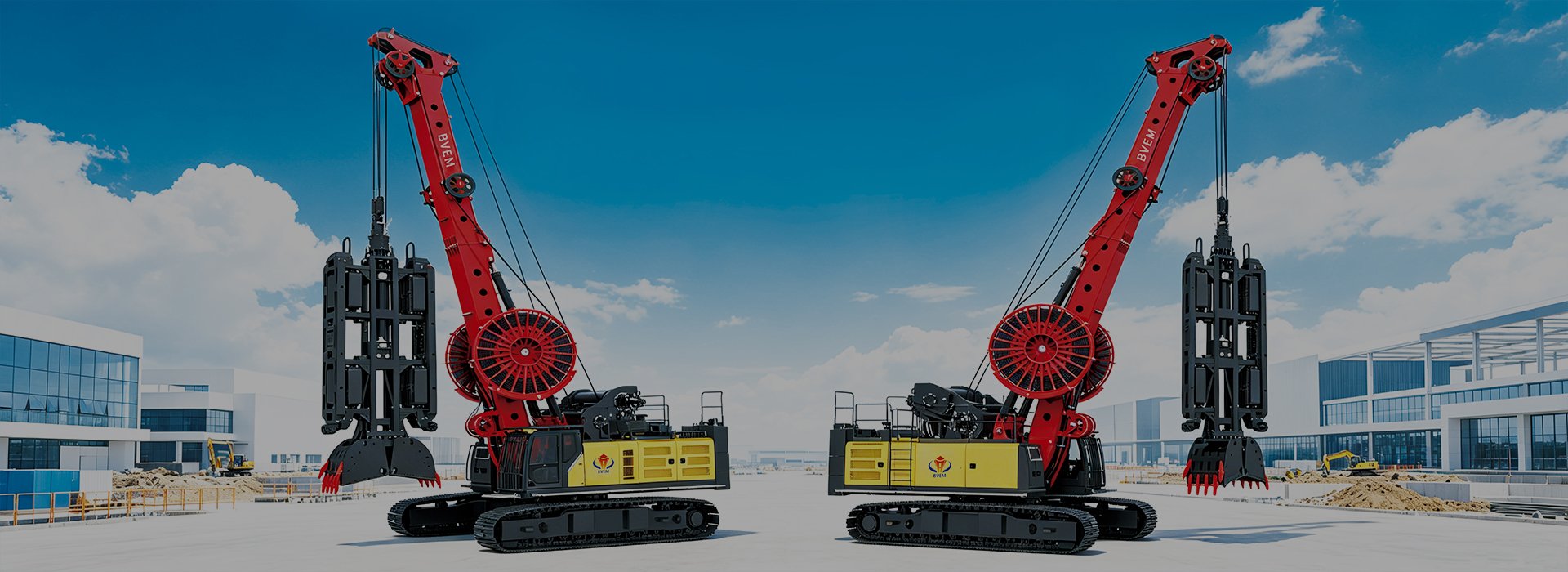

BVEM Diaphragm Wall Grab | One-stop Engineering Solutions

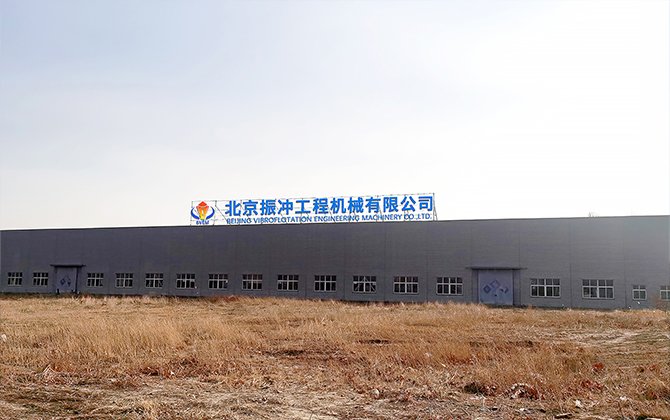

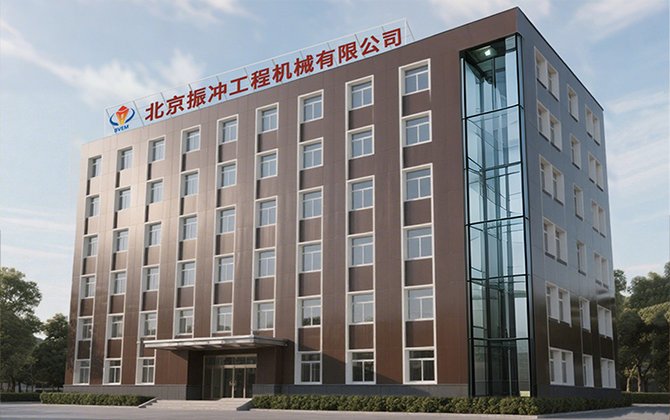

As an innovative pacesetter in China’s construction machinery industry, BVEM specializes in the R&D, manufacturing, sales, and after-sales service of heavy engineering machinery, delivering customized one-stop equipment solutions for global clients.
Our product portfolio includes excavators, vibroflots, vibratory hammers, Vibrocat integrated units, augers, sand cleaners, mud treatment systems, generators, electrical control cabinets, piling rigs, hydraulic grabs, and trench cutters. Our equipment is widely exported to Southeast Asia, the Middle East, Africa, and other regions, supporting more than 1,500 landmark engineering projects across the globe.
Upholding technological innovation and rigorous international manufacturing standards, we strive to fulfill diversified client needs with dependable product performance and boost the global competitiveness of Chinese construction machinery.
BVEM Diaphragm Wall Grabs | High Precision, High Efficiency & Global Adaptability
BVEM series diaphragm wall grabs are widely applicable to metro, water conservancy, municipal engineering, and various deep foundation projects. It perfectly adapts to global complex and extreme working conditions, including high-temperature hard rock, humid composite strata, and cold frozen soil. Featuring high precision, high efficiency, low fuel consumption, and stable continuous operation, the equipment achieves 100% acceptance rate in multiple benchmark projects, with comprehensive performance fully comparable to mainstream imported equipment.

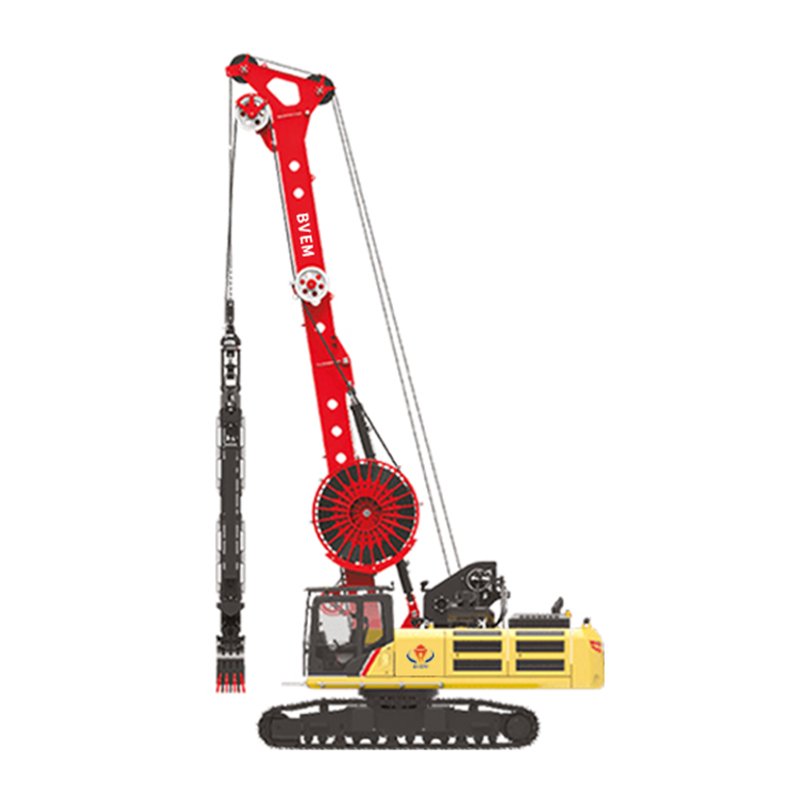

The BVEM-H500 diaphragm wall grab serves Surat Metro. It tackles 10~15MPa strongly weathered rock below 19m, with a max trenching depth of 80m and 1000mm wall thickness onsite. A standard 35m panel takes around 22h, verticality ≤1‰ with a full acceptance pass. Fuel consumption is 22~24L/h for soil and 29~32L/h for rock, much more economical than imported models. Stable under 42~48℃ high temperature with low breakdown rate, it becomes key equipment for local diaphragm wall construction.
BVEM-H700 works on the Singapore Metro. Below 12m lies 12~18MPa sandstone & granite boulders. Max trenching depth 80m, actual construction depth 78.5m with wall thickness of 0.8/1.2/1.5m. A 40m panel takes 24~26h and verticality ≤1‰ with full acceptance. Fuel:23~25L/h(soil),31~34L/h(rock), more efficient than imported grabs. Reliable under 30~38℃ humid weather, it is the key construction machine for the diaphragm wall.
The BVEM-H500 diaphragm wall grab serves the Harbin cold-climate metro. 0~16m frozen silty clay & cobble with partial 3~7MPa weathered rock. Max digging depth 80m, actual 49.5m with 1000mm wall thickness. A 32m panel finishes in ~21h, verticality ≤1‰ with full acceptance. Fuel:21~23L/h(soil),28~31L/h(rock), more economical than imported grabs. Stable under -25℃ frigid weather, it is the core equipment for frozen ground construction.
Customer Testimonials
We invested in the BVEM R235-DW dual-purpose hydraulic grab for our urban infrastructure projects in Malaysia. The ability to switch seamlessly between bored pile and diaphragm wall construction in a single unit has significantly reduced our equipment investment and minimized site downtime. It’s a highly practical solution for dense city environments.
Tan Wei MingGeneral Contractor, Urban Development Projects (Malaysia)On our metro diaphragm wall project in India, the BVEM H500 delivered outstanding results. It consistently achieved excellent verticality of 1‰ while the real-time trench monitoring system via mobile APP eliminated the need for costly traditional ultrasonic testing. Even in high-temperature conditions, the equipment performed reliably.
Rajesh SharmaMetro Project Supervisor, Underground Infrastructure (India)Dense hard rock formations were a major challenge on our airport deep foundation project in Nigeria. The BVEM H700’s powerful 220-tonne closing force easily handled the hard strata, while the robust chassis provided excellent stability. It has greatly improved our excavation efficiency and overall project progress.
Ibrahim AdeyemiInfrastructure Project Manager, Airport Development (Nigeria)
Yes. The modular structure supports one-click switching between drilling and grabbing modes. One machine covers two construction processes and saves additional equipment procurement costs.
It is applicable for soil, sand, and various hard rock strata. Optimized chassis ensures stable operation for airport and large deep foundation projects.
The vertical precision is controlled within 1‰. Mobile APP checks trench curve in real time and helps clients save costly ultrasonic inspection fees.
Spacious sealed cab with constant-temperature AC, adjustable wide seat, and HD touch screen with Bluetooth, greatly improving driving comfort.
We run a global service network with local service centers and parts warehouses. Clients get 7×24h APP support, routine inspections, and yearly full maintenance.
