Why BVEM Filter Press Is Your Most Reliable Choice?

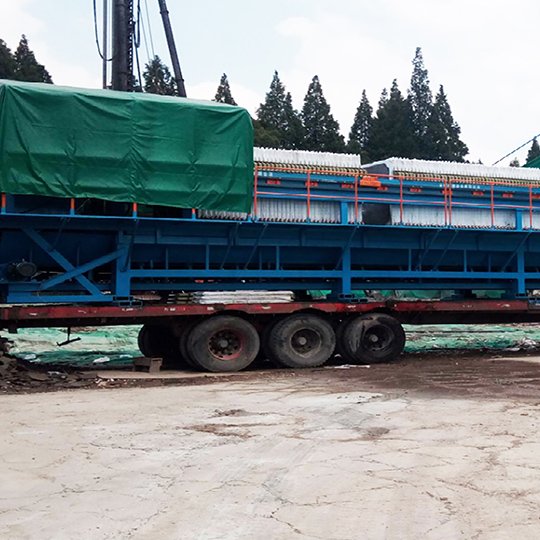

- 20 years specialized in filter press R&D & manufacturing.

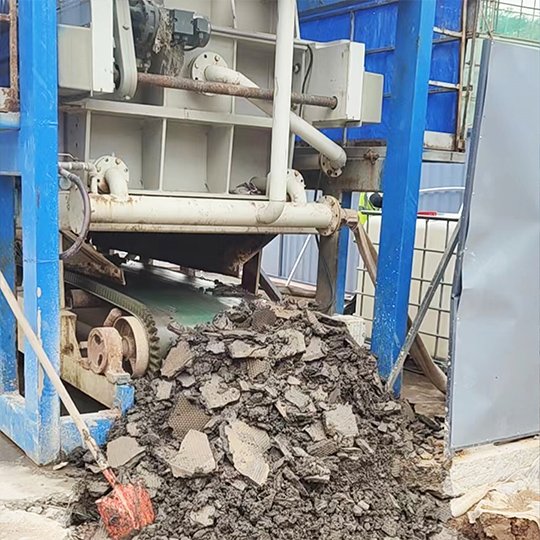

- Integrated mechanical-electrical-hydraulic design with variable-frequency motor enables fast discharge and low energy consumption.

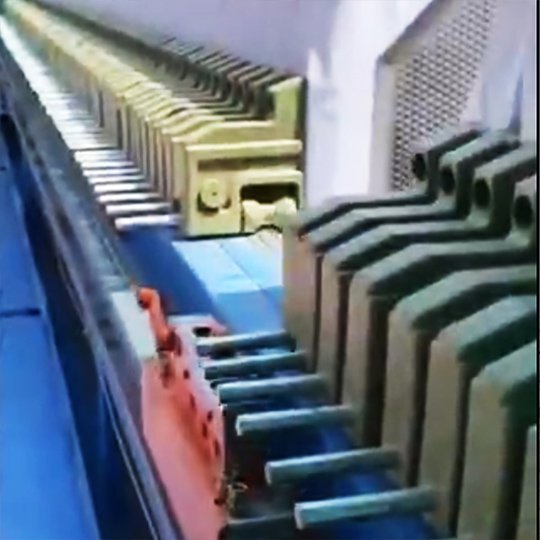

- High-performance molded GFRPP filter plates with leading quality.

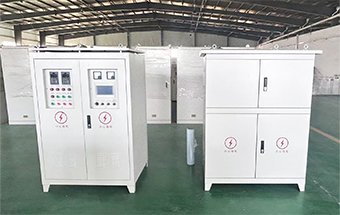

- Core electrical and hydraulic components adopt well-known brands such as Siemens and Rexroth for long service life.
BVEM Filter Press: High-Strength Plates, Corrosion & Deformation Resistant
BVEM filter press adopts High-performance molded GFRPP filter plates together with an intelligent sealing groove design, ensuring zero material leakage and no slurry splashing under high-pressure working conditions. The filter plates feature impact resistance, acid and alkali resistance, and anti-deformation performance. Their sealing performance remains consistently stable during long-term operation, keeping your work site clean and tidy.
The whole machine is well-built, runs smoothly, and boasts a long service life. The filter plates can serve steadily for more than three years, and the diaphragm components can withstand up to 100,000 pressing cycles without easy damage.
Place your order now to enjoy professional customized services.

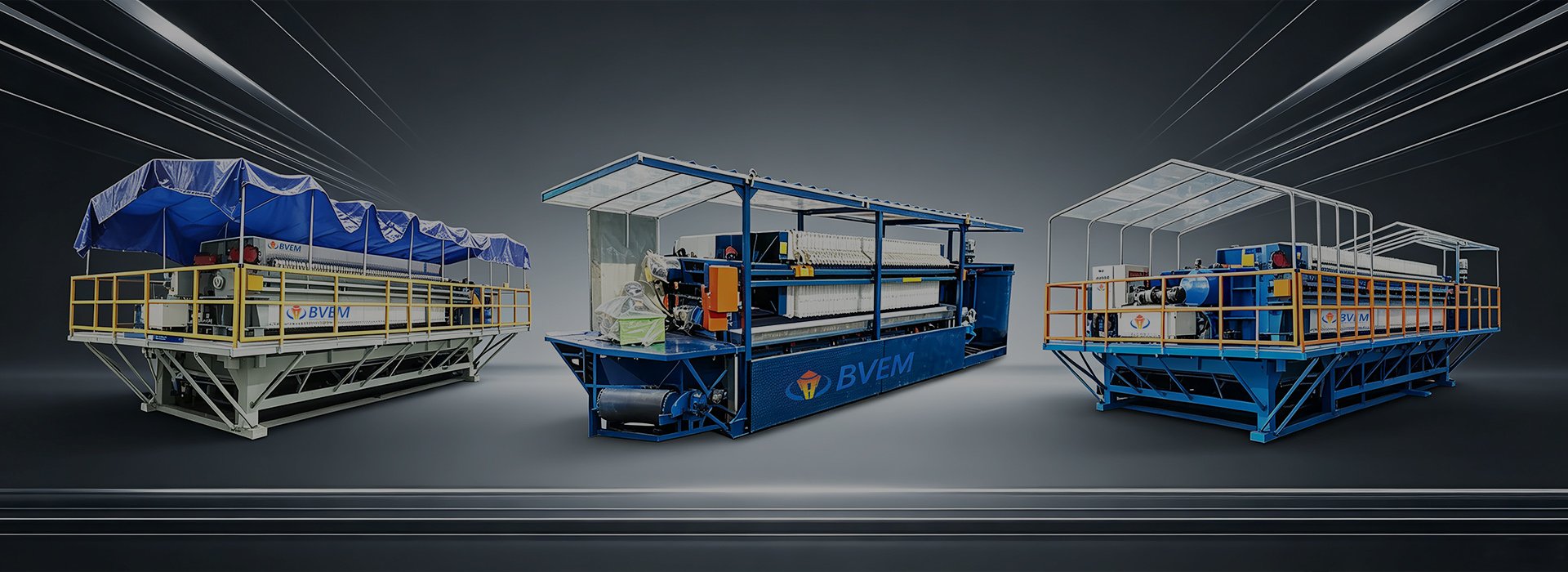

Filter Press Series

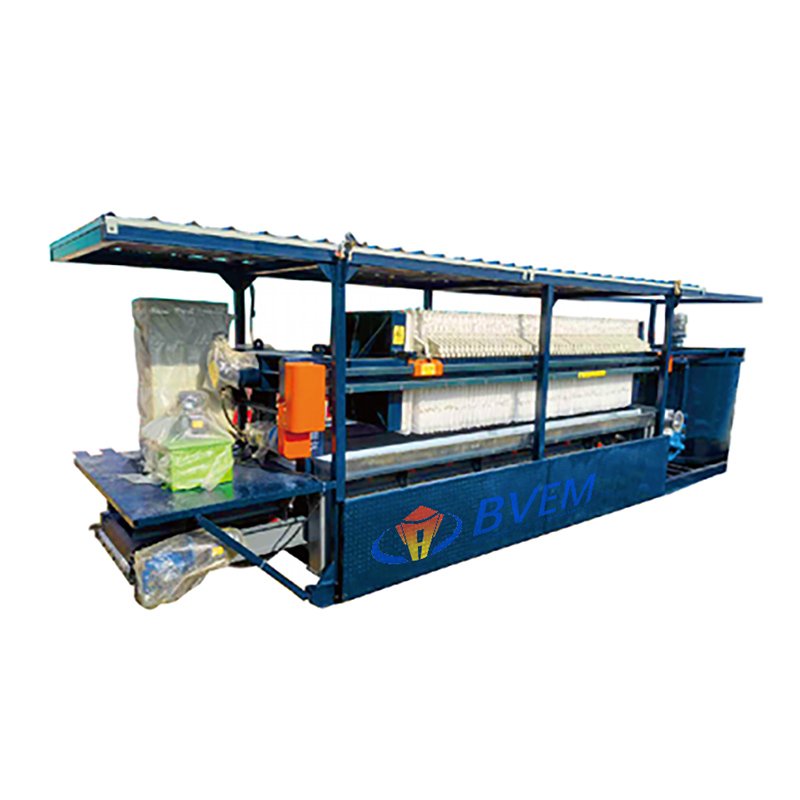

Suitable for small construction sites, scattered pile & foundation pit slurry, small municipal and river dredging. Designed for decentralized small emergency projects with limited space and daily capacity ≤100 m³.

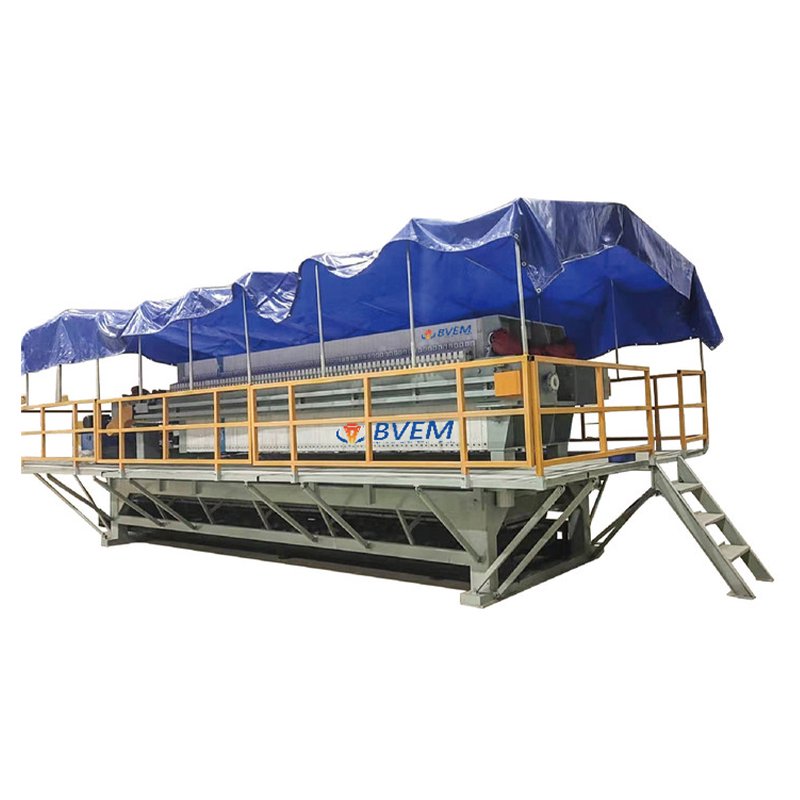

Suitable for medium buildings and municipal sites, continuous pile construction. Handles municipal pipe network, small and medium sewage plants, river and lake dredging sludge, meeting conventional environmental projects with a daily capacity of 200 m³.

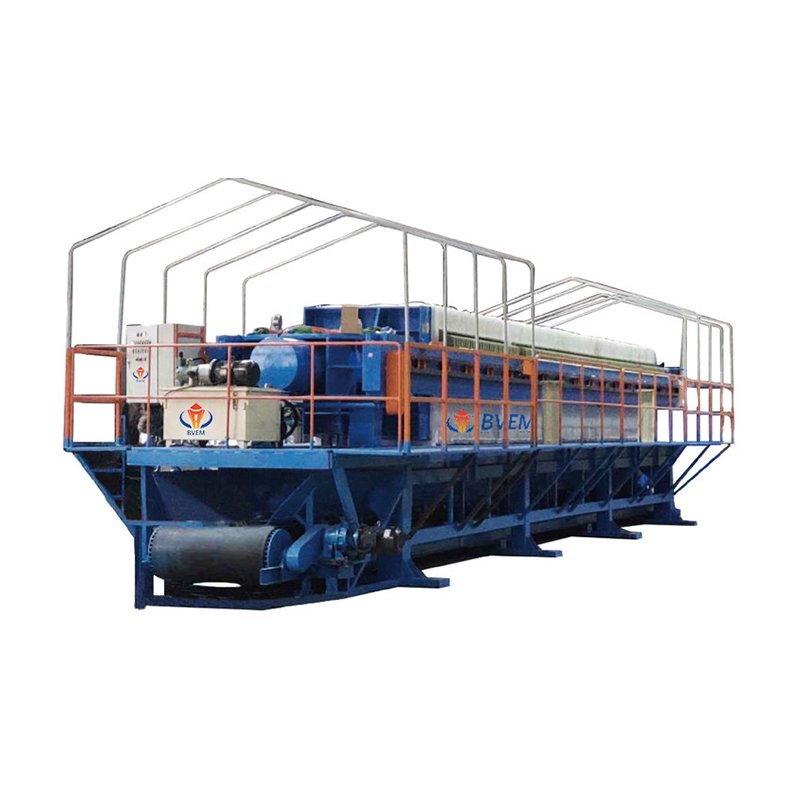

Suitable for large infrastructure, shield/bridge/tunnel engineering, large-scale municipal and port dredging, and mine tailings treatment. Ideal for large centralized treatment projects with a daily capacity over 500 m³.
Why Choose BVEM Filter Press?
The BVEM filter press is fully integrated, energy-saving, and labor-saving. It dewaters thoroughly, works reliably, and is ready for outdoor sites, making slurry treatment simple and efficient.
Adopts a variable frequency motor for fast unloading and lower power consumption than ordinary models.
Pressure filtration realizes thorough dewatering, clear water output, and low moisture content of filter cakes.
Adaptable to slurry with a specific gravity of 1.08–1.20g/cm³ to meet various sludge treatment needs.
Equipped with automatic plate pulling and a belt conveyor for smooth discharging and labor-saving.
Standard with rainshed and guardrails, ready for direct outdoor construction site use without modification.

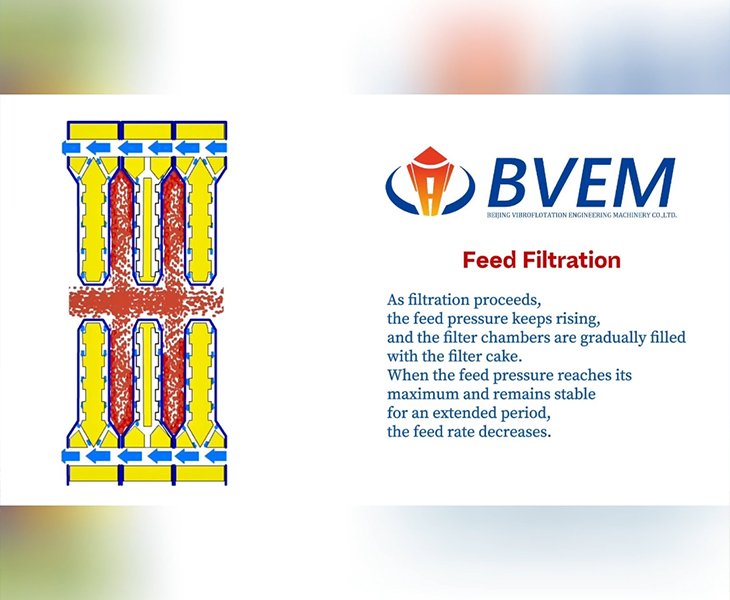

High-efficiency Filter Press, Cut Your Operating Costs
BVEM filter press adopts an integrated design of mechanical, electrical, and hydraulic systems, equipped with a frequency-conversion plate-pulling motor. It can intelligently and adaptively adjust the operating speed and power according to actual working conditions and load, effectively reducing no-load energy consumption and stabilizing the starting current.
The power-saving rate of the plate-pulling motor reaches 25%~35%, and the overall unit energy consumption of the equipment is reduced by 18%~28%. It features faster discharging speed and higher working efficiency, helping you cut power costs and achieve stable energy-saving operation in long-term use with outstanding cost performance.

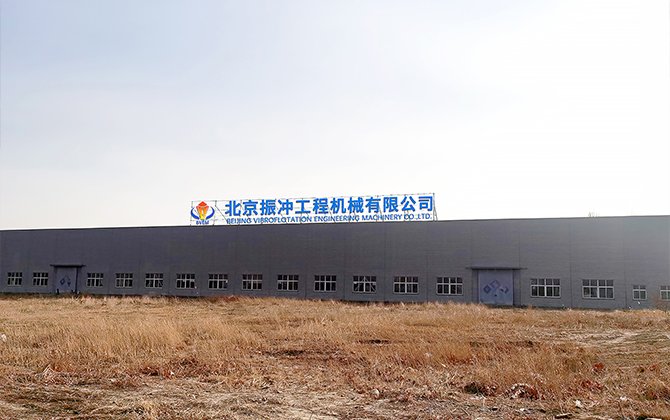

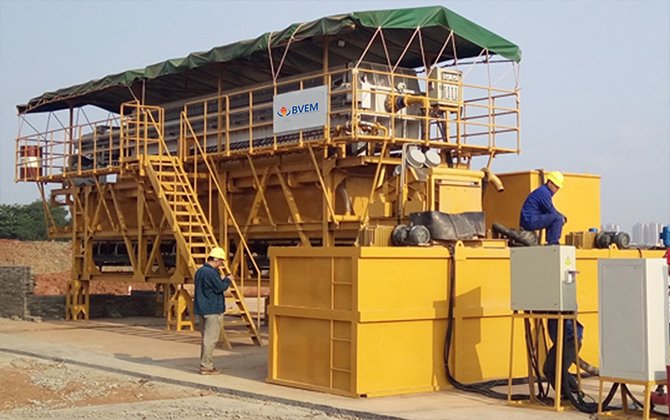

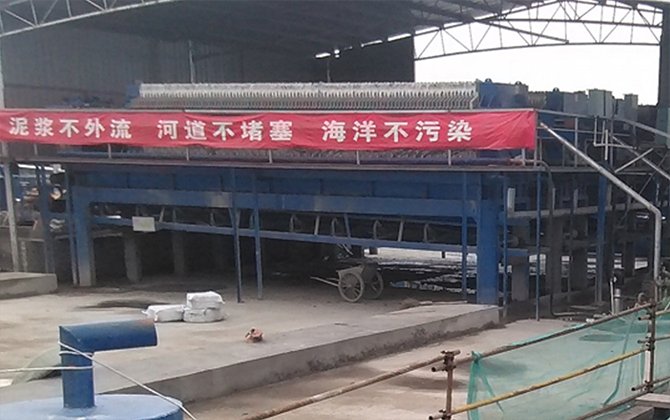

Professional Filter Press Supplier with Global Delivery
We are a professional filter press manufacturer with over 20 years of experience, integrating R&D, design, production, and after-sales service. We own core filter plate manufacturing technology and independent research and development capabilities.
Our filter presses feature complete specifications, with a filtration area ranging from 1 to 1000㎡ and working pressure from 0.4MPa to 1.6MPa. Certified by ISO and CE, our products are exported to Europe, Asia, Africa, and other regions. Focusing on environmental protection and wastewater treatment, we provide customized solutions for global clients.
Choose BVEM Filter Press to Fully Solve Industrial Sludge Treatment
The application of the BVEM filter press gets verification in different regions and on-site conditions.
The GX100 automatic chamber filter press is suitable for highly corrosive nickel and copper-containing electroplating sludge with a solid content of 3%–5%. Equipped with 10㎡ PP filter plates and operating at 0.8MPa, it occupies no more than 6㎡ and handles 5–8 tons of sludge daily. Fully automatic with a 45–60 minute batch cycle, it only needs one operator. It reduces sludge cake moisture from 85% to 65%–70% with over 40% volume reduction. Clear filtrate can be recycled to save 30% water, cutting about SGD 4,500 in monthly hazardous waste costs, with investment recovered in 6 months.
Johor, Malaysia sand washing project adopts the GX200A3 automatic diaphragm filter press to treat fine sand and clay tailings with 15%–20% solid content, with a daily processing capacity of 80–100 tons. With a 200㎡ filtration area, 1.2MPa high pressure, and automatic plate pulling, each batch takes 70–90 minutes and processes 12–15m³. The filter cake moisture content reaches 50%–55% after pressing, suitable for direct stacking or brick making. All filtrate is recycled for sand washing with zero discharge and an over 90% water utilization rate. It replaces a 3000 square meter sedimentation tank to save land and reduce environmental and transportation costs by $120000 annually.
GX500A3 filter press was adopted to process high viscosity mixed chemical sludge (dyes and intermediates) with a solid content of 8% to12%, handling 300–400 tons of sludge per day.
500 ㎡ filtration area, 1.6MPa compression pressure, frequency conversion energy saving design, supports 24-hour continuous operation, meets strict moisture requirements of ≤ 55%. Each batch runs for 90 to 120 minutes with a capacity of 40 to 50 cubic meters, reducing the moisture content of the sludge cake to 45% -50% and reducing the sludge volume by more than 50%. Controlled by an intelligent PLC, it only needs two operators on shift. Qualified filtrate is recycled to save 40% water, reducing annual hazardous waste disposal costs by over 8 million RMB.
Customer Testimonials
“On our Singapore municipal construction project, the BVEM GX100 filter press has been outstanding. Its compact design fits perfectly into tight urban sites, while delivering efficient sludge dewatering and full compliance with strict environmental regulations. It has noticeably boosted our on-site productivity.”
Wei Lin TanSite Engineer, Municipal Infrastructure (Singapore)“The BVEM GX500 large-scale filter press performs reliably under Dubai’s demanding desert conditions. It handles high-volume slurry with excellent stability and meets all local environmental standards, ensuring smooth progress on our major infrastructure developments.”
Ahmed HassanProject Supervisor, Infrastructure Development (UAE)“Working on river dredging in Malaysia, the BVEM filter press has made a big difference. It offers fast and clean solid-liquid separation with zero mud leakage. The ability to reuse the separated water has helped us reduce costs and meet sustainability targets effectively.”
Mohd RazakDredging Operations Manager, River & Coastal Works (Malaysia)“For our municipal sewage treatment project in Thailand, the BVEM GX200 filter press provides highly efficient dewatering and outstanding cost-performance. It consistently meets environmental compliance requirements while delivering reliable, low-maintenance operation.”
Supattra ChenEnvironmental Engineer, Wastewater Treatment (Thailand)
A filter press is a solid-liquid separation equipment mainly used for filtration and purification processes.
Filter presses are widely used in industries such as chemical, environmental protection, mining, food processing, and wastewater treatment.
All filter presses have passed ISO quality system certification and EU CE certification, meeting international environmental and export standards, and can be sold globally.
High-quality reinforced polypropylene filter plates are impact-resistant, acid and alkali-resistant, not easily deformed, and have a normal service life of over 3 years.
The diaphragm component can withstand up to 100000 press cycles without damage.
We provide free installation, debugging, technical training, and warranty services.
Spare parts supply and lifetime technical support can solve all your operational problems in one stop.
