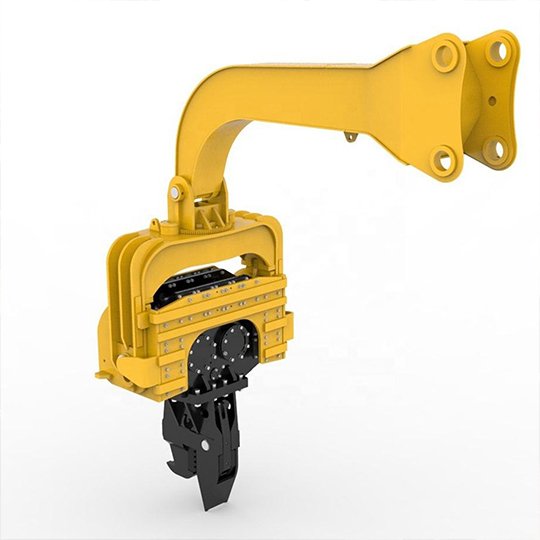

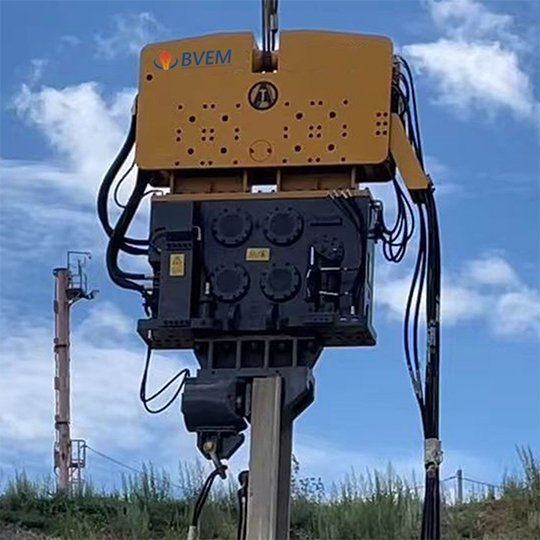

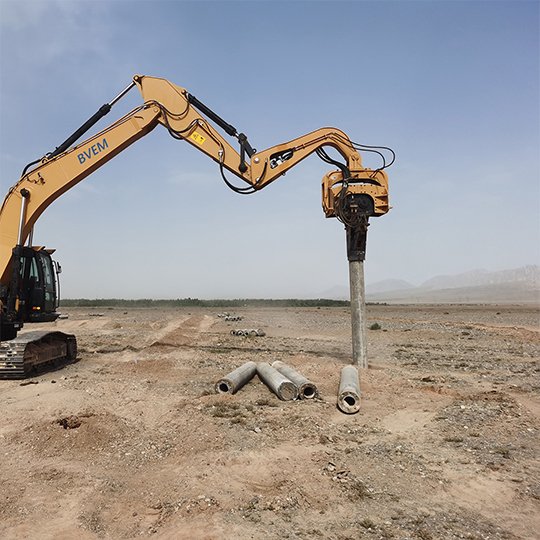

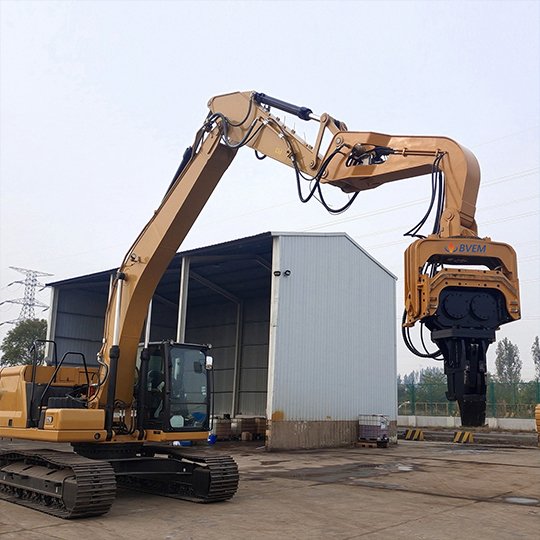

Why Choose BVEM Vibro Hammer?
- Core components adopt Rexroth hydraulic systems and German FAG bearings, with premium damping, cooling, and anti-corrosion designs.
- 22 invention patents & 92 utility model patents.
- Fuji variable-frequency motor-driven hydraulic power unit: low noise, eco-friendly, low maintenance cost.
- Lightweight design, powered by an external power pack, delivers maximum force even in confined spaces.
- US nano anti-corrosion tech & 5+ surface treatments for reliable performance in harsh offshore environments.
Reliable BVEM Vibro Hammer Manufacturer for Complex Conditions
The BVEM vibro hammer is equipped with exclusive variable eccentric moment and high-frequency resonance-free technology, serving as your ideal piling partner for complex working conditions. With zero amplitude, no impact, and no jitter during start and stop, it helps you eliminate resonance damage to equipment, cranes, and surrounding buildings, saving you expensive maintenance and compensation costs. Its stepless adjustable amplitude allows you to easily adapt to different geological conditions and construction demands, saving you the hassle of frequently replacing equipment.
Furthermore, it supports installation on telescopic truck cranes, bringing you more flexible application scenarios and greatly reducing construction costs. It provides you with professional piling solutions that are safe, efficient, and low-disturbance, perfectly suitable for sensitive and complex working conditions, including urban areas, adjacent buildings, housing construction, and port projects.
Contact us to place your order now!
Standard Series（Municipal & Building Construction）
Heavy-Duty Series（Cross-Sea & Hard Geology）
BVEM-360B- Eccentric Moment:102 kg.m
- Exciting Force:3630 kN
- Max. Line Pull Force:1000 kN

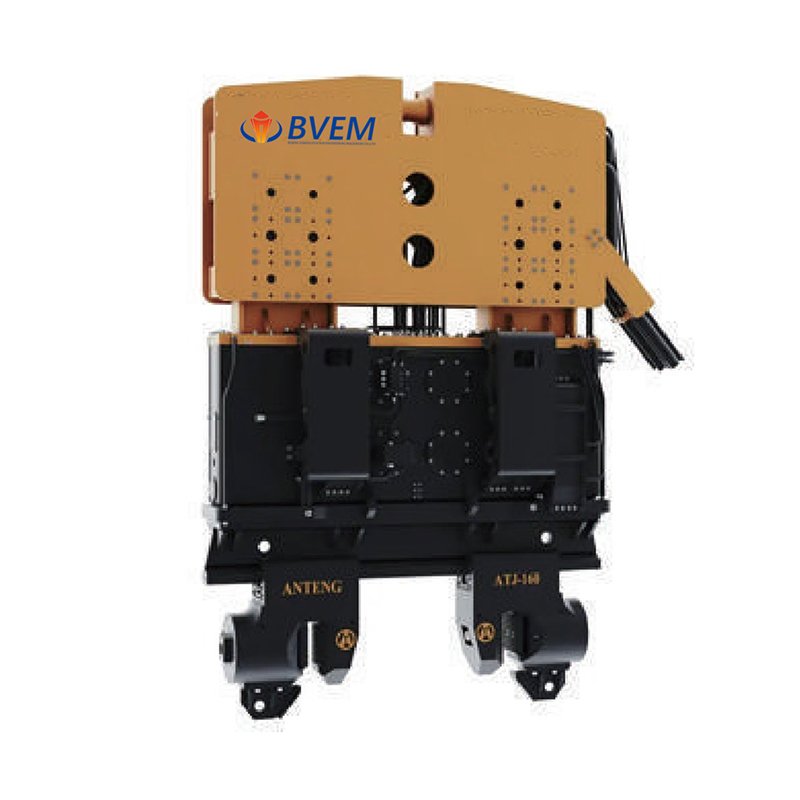

BVEM-500B- Eccentric Moment:250 kg.m
- Exciting Force:5370 kN
- Max. Line Pull Force:2500/3200 kN

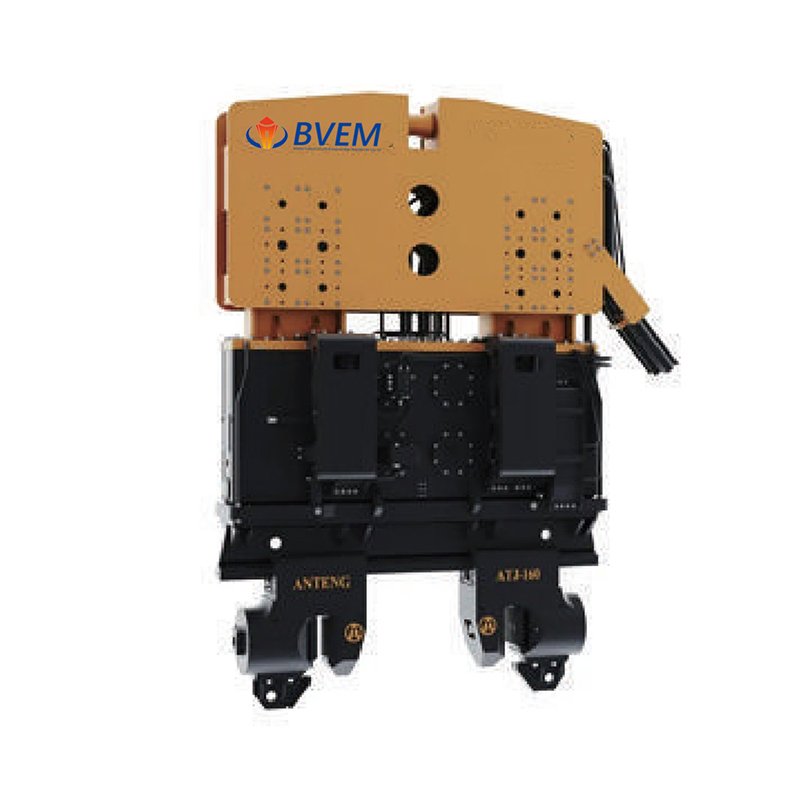

BVEM-800B- Eccentric Moment:550 kg.m
- Exciting Force:11000 kN
- Max. Line Pull Force:6000 kN
High-Frequency Resonance-Free Series（Urban & Low Vibration）

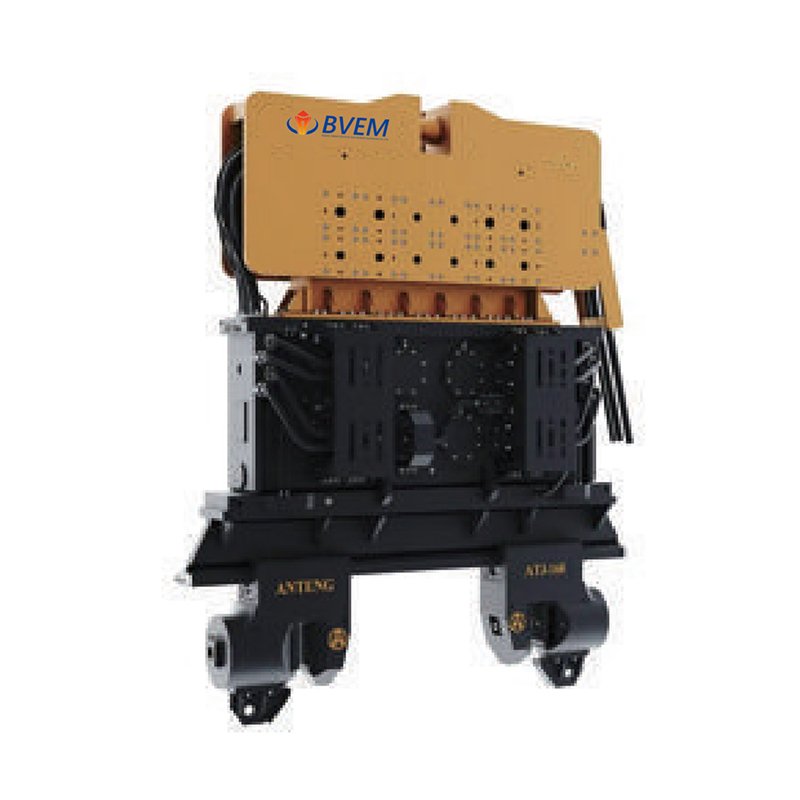

BVEM-230F- Eccentric Moment:33.5 kg.m
- Exciting Force:2300 kN
- Max. Line Pull Force:800 kN
Long-Type Heavy Series（Deep-Pile & Large-Casing for Deep-Water Ports）

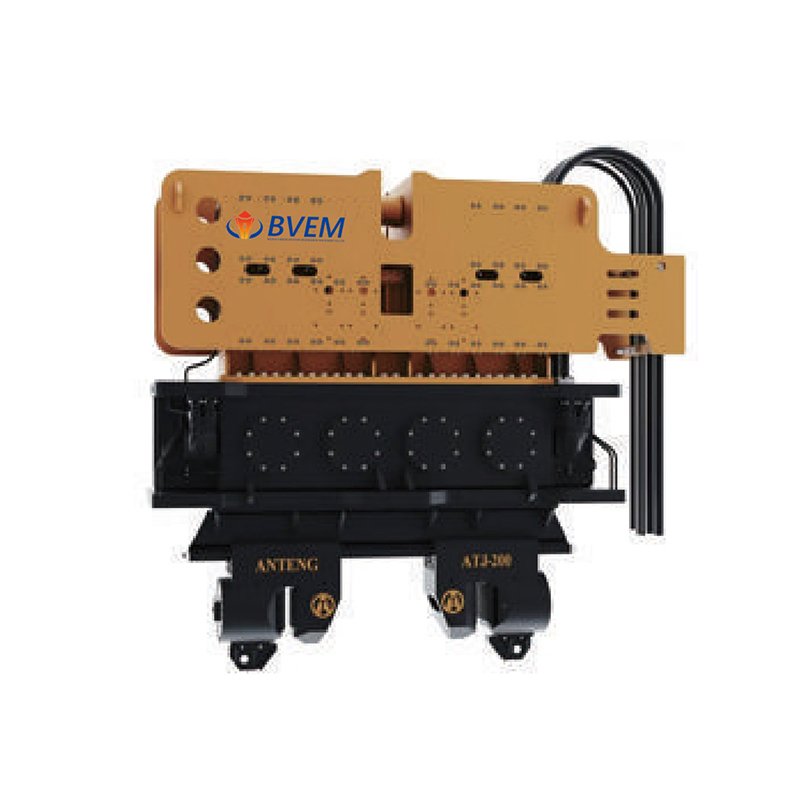

BVEM-300L- Eccentric Moment:150 kg.m
- Exciting Force:3230 kN
- Max. Line Pull Force:1600 kN

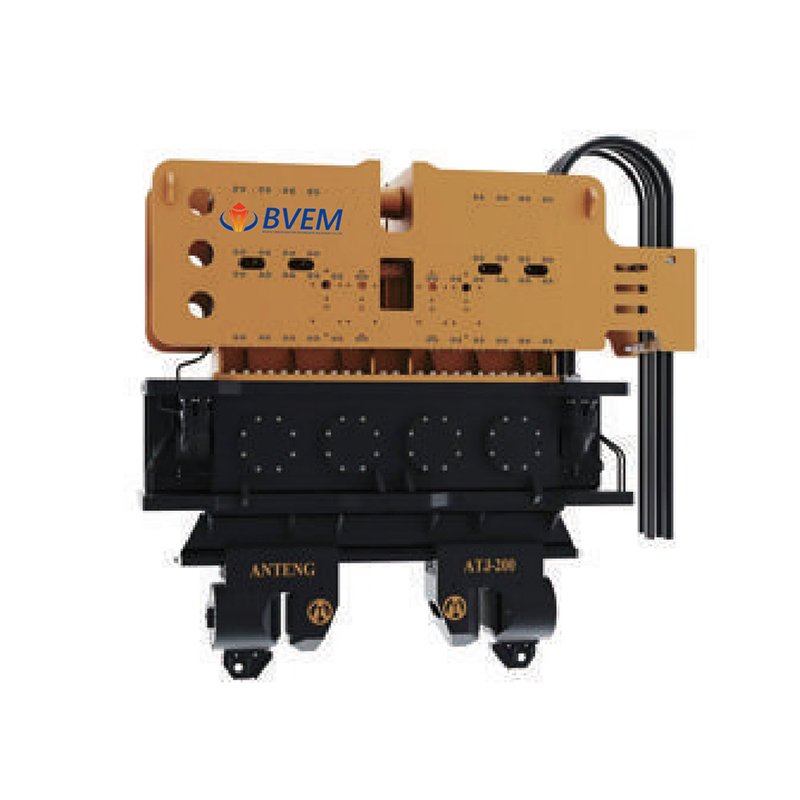

BVEM-400L- Eccentric Moment:200 kg.m
- Exciting Force:4300 kN
- Max. Line Pull Force:2500 kN
Ultra-Large Single-Unit Series（Ports & Offshore Infrastructure）
BVEM-600- Eccentric Moment:300 kg.m
- Exciting Force:6450 kN
- Max. Line Pull Force:3500/4000 kN
BVEM-1600- Eccentric Moment:1000 kg.m
- Exciting Force:15790 kN
- Max. Line Pull Force:9600 kN
Variable-Moment High-Frequency Resonance-Free Series（Precision & Stepless Variable Moment）
BVEM-100VM- Eccentric Moment:0-15 kg.m
- Exciting Force:1030 kN
- Max. Line Pull Force:300 kN
BVEM-130VM- Eccentric Moment:0-23 kg.m
- Exciting Force:1340 kN
- Max. Line Pull Force:500 kN
BVEM-180VM- Eccentric Moment:0-35 kg.m
- Exciting Force:1860 kN
- Max. Line Pull Force:600 kN
BVEM-250VM- Eccentric Moment:0-42 kg.m
- Exciting Force:2430 kN
- Max. Line Pull Force:800 kN

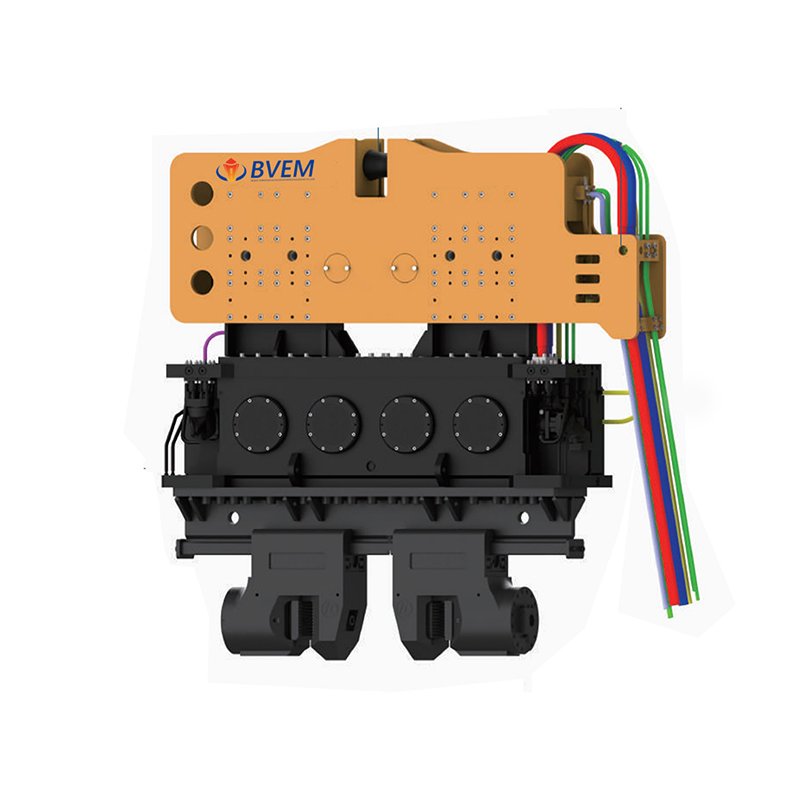

BVEM-300VM- Eccentric Moment:0-52 kg.m
- Exciting Force:3020 kN
- Max. Line Pull Force:800 kN
BVEM-360VM- Eccentric Moment:0-62 kg.m
- Exciting Force:3600 kN
- Max. Line Pull Force:1000 kN

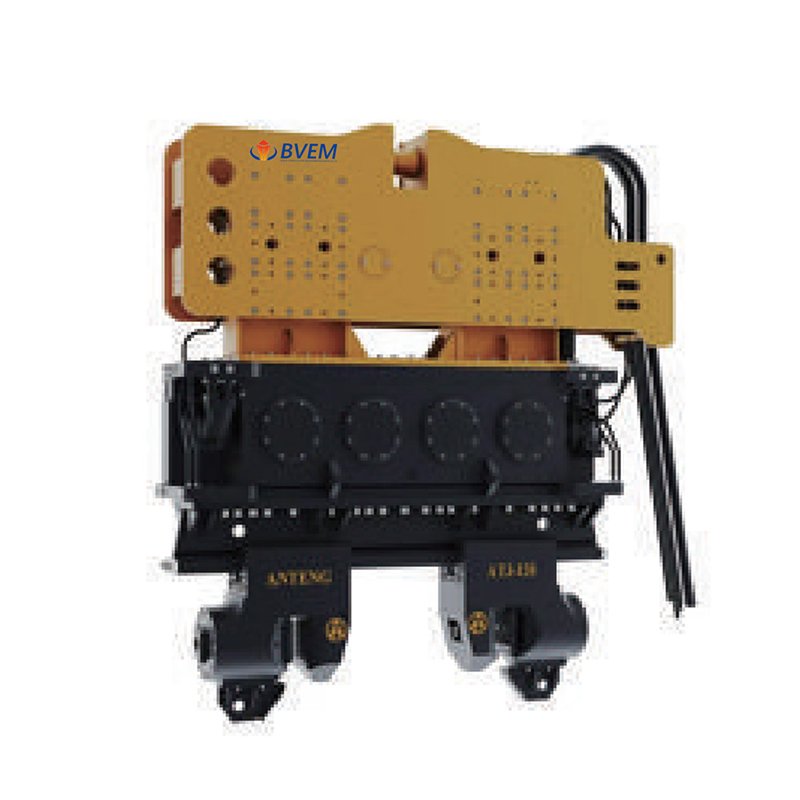

BVEM-400VM- Eccentric Moment:0-90 kg · m
- Exciting Force:4350 kN
- Max. Line Pull Force:1000 kN
Multi-Unit Synchronous Series（Mega Cross-Sea & Super Foundations）
BVEM-400LX2- Eccentric Moment:400 kg.m
- Exciting Force:8600 kN
- Max. Line Pull Force:4800 kN
BVEM-400X2- Eccentric Moment:452 kg.m
- Exciting Force:8370 kN
- Max. Line Pull Force:5000 kN
BVEM-500BX2- Eccentric Moment:500 kg.m
- Exciting Force:10740 kN
- Max. Line Pull Force:6400 kN
BVEM-600X2- Eccentric Moment:600 kg.m
- Exciting Force:12900 kN
- Max. Line Pull Force:8000 kN
BVEM-400LX4- Eccentric Moment:800 kg.m
- Exciting Force:17200 kN
- Max. Line Pull Force:10000 kN

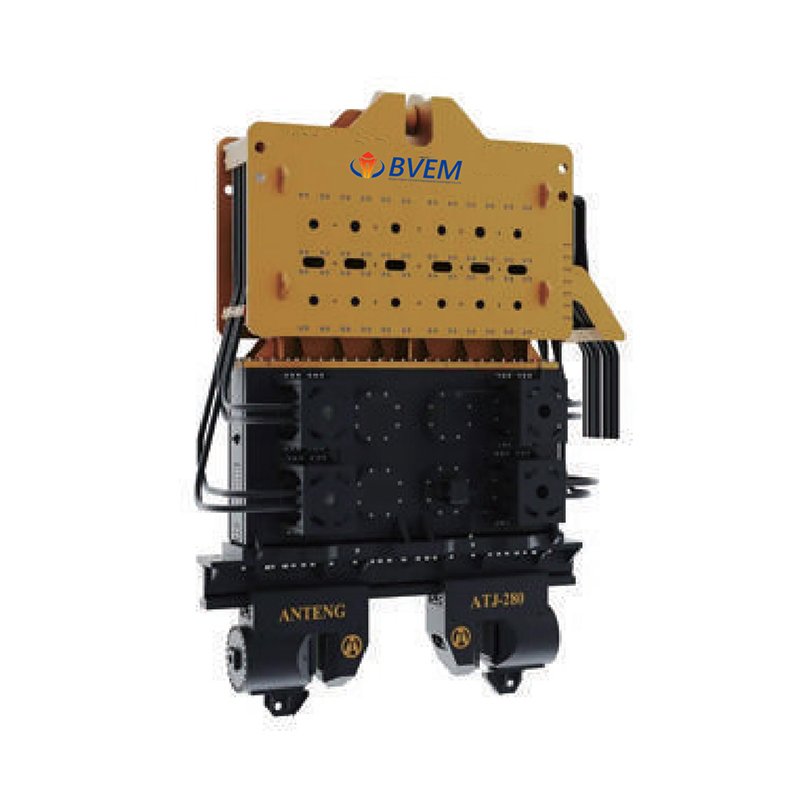

BVEM-400LX12- Eccentric Moment:2400 kg.m
- Exciting Force:51600 kN
- Max. Line Pull Force:28800 kN
BVEM-800BX4- Eccentric Moment:2200 kg.m
- Exciting Force:44000 kN
- Max. Line Pull Force:24000 kN
Why You Need Vibro Hammer？
The BVEM vibro hammer is professionally designed for pile driving and pulling works. It delivers stable power, high efficiency, and reliable performance for various construction and foundation projects.
Built-in two-stage vibration rubber protects the crane boom better and enhances the pile pulling force.
Combined pile turning and piling design realizes an integrated operation for higher efficiency.
Adopts a German FAG bearing to prolong the service life of the vibratory hammer.
Embedded or outer shell structure prevents collision damage and improves equipment reliability.
Top steel plate hole design reduces over 75% exposed hoses, lowering damage and failure rate.
Equipped with Eaton/Manuli hoses and a manifold for a neat and standard pipeline arrangement.
Full Rexroth hydraulic components guarantee long service life and stable working performance.

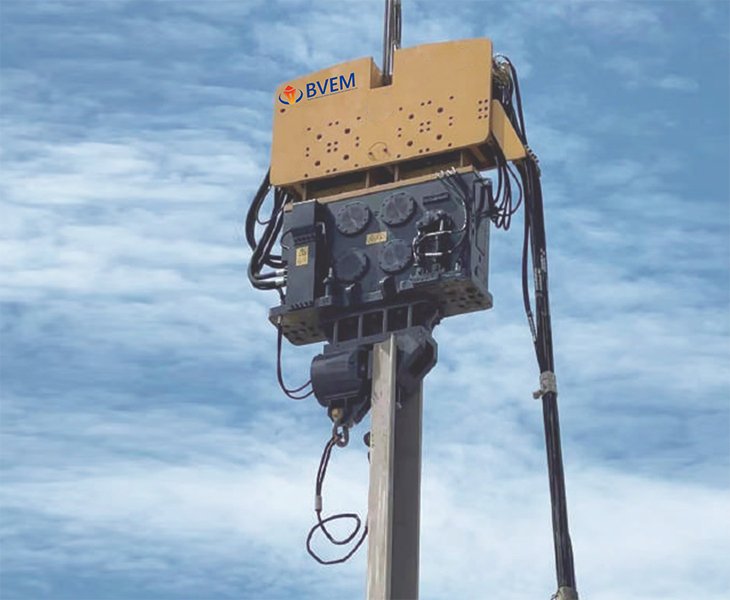

BVEM Vibro Hammer | Strong Power & High Efficiency
The core component of the BVEM vibro hammer — the heavy metal-filled eccentric block — adopts an exclusive heavy metal filling process. Different from the traditional all-iron eccentric block, it has a more excellent dynamic performance. The actual benefits it brings to you are as follows: Under the premise that the rotation speed of the eccentric block in the vibratory hammer gearbox remains constant, the eccentric block can generate greater eccentric moment, which directly provides additional piling strength and construction speed for your piling project, helps you improve piling construction efficiency, shorten the construction period, and at the same time enhance the equipment’s adaptability to complex geological piling scenarios, reduce construction costs, and ensure the quality and progress of the piling project.

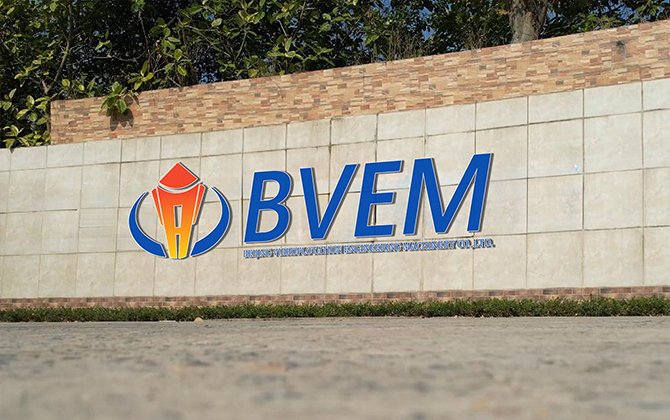

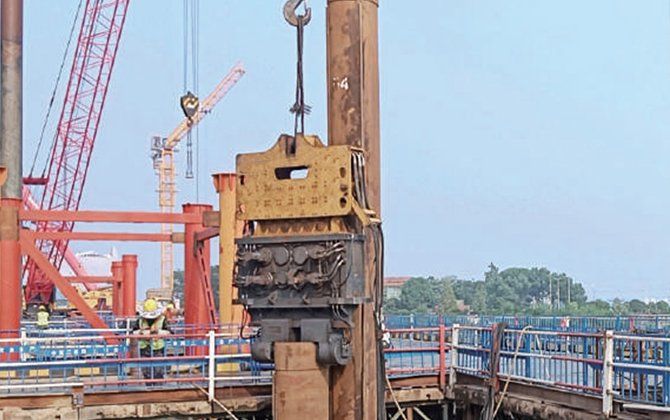

Professional Vibro Hammer Supplier with Global Delivery
Founded in 1985, we specialize in R&D, production, sales, and leasing of vibratory hammers and other piling equipment. With over 30 years of development, we have become a leading domestic enterprise. Our products are widely used in wharves, bridges, offshore wind power, and building foundation projects.
We have more than 30 models and break the overseas monopoly through continuous technological innovation. Certified by ISO9001/14001/45001 and CE, we hold over 100 patents. Our products are exported to more than 80 countries, including Russia, Malaysia, and Brazil. We will further develop core technologies and manufacturing processes to build a world-class piling equipment brand and expand Chinese intelligent manufacturing globally.
Customer Testimonials
“On our coastal wharf foundation project in the Philippines, the BVEM vibro hammer has shown outstanding performance. It delivers consistent vibration power and excellent long-term durability, even in harsh marine conditions. Thanks to its reliability, we were able to complete the offshore piling works ahead of schedule.”
Miguel SantosProject Manager, Marine & Port Construction, Philippines“During the construction of a major highway foundation in Qatar, the BVEM vibro hammer proved highly effective. Its powerful driving force and remarkably low failure rate significantly boosted our piling productivity, helping us maintain tight schedules on this large-scale infrastructure project.”
Abdul Rahman Al-KuwariSite Engineer, Highway & Infrastructure Development, Qatar“The precision hydraulic clamp on the BVEM vibro hammer is exceptional. It securely grips the piles without any slipping, ensuring stable and efficient operation even under heavy load. This has greatly improved safety and productivity on our industrial zone piling works.”
Chinedu OkonkwoConstruction Supervisor, Industrial Park Development, Nigeria
12-month warranty for the main unit, plus global technical support and timely spare parts supply.
We offer over 30 vibro hammer models.
BVEM vibro hammers cover municipal works, cross-sea projects, offshore ports, urban low-vibration piling, and super-large foundation construction.
Standard models take 7–15 days, while customized types need 30–45 days.
We provide more complete models, higher cost-performance, mature synchronous technology, durable hydraulic clamps, and strong adaptability to harsh offshore geology.
